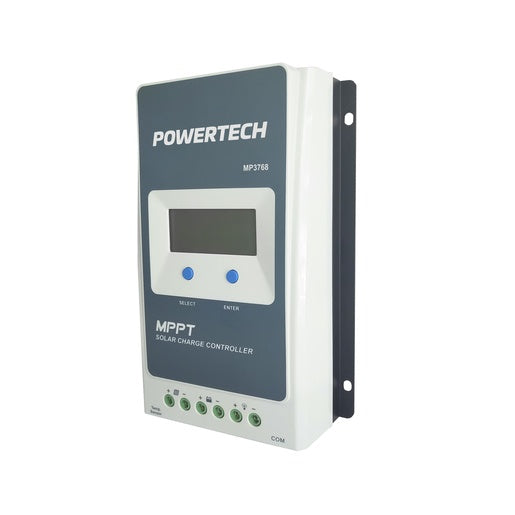

SOLAR CHG CTRL MPPT 12/24V 30A LA/LITH

What a feature packed Solar Controller! Using Maximum Power Point Tracking (MPPT) for maximum efficiency and charge rate, able to charge lead acid (sealed, gel or flooded) or lithium battery banks between 8V to 32V, and supporting 12V solar arrays up to 580W or 24VDC arrays up to 1170W, it suits a huge range of applications. It features bulk, constant and float charge stages for rapid, efficient and safe battery charging, with feedback on charge status, current, voltages, etc. shown on the LCD screen. Built into a durable case for permanent installation with heavy duty screw terminals for cabling up to 8AWG.

À

Note:À Maximum Charge output is limited to 30A if the Solar Panel input is greater than 390W on 12V or 780W on 24V systems.À

Features:

- Advanced MPPT control technology

- High tracking and conversion efficiency

- Supports Sealed, Gel or flooded lead acid and Lithium batteries

- 3-stage intelligent charging

- Multiple load work modes

- Extensive electronic protection

- Backlit LCD display

- RS485 communication

- Common negative grounding
À

À

Compatible Battery Bank Voltages 12 / 24VDC SelectableÀ

À

À

À

- Sealed, gel or flooded Lead-acid (8~17V/12V; 18~32V/24V)

- LiFePO₄À (12V/24V)

- LiNiCoMnO₂À (12V/24V)
